Product introduction

NL-F120RGB is a RGB type of NORDLYS SoftLights with narrow beam spread of light Enables creating pure red,green,blue and even mixture of them for any desire color Of light.There is a special page in NORDLYS transmitter device(called TANYA) for our RGB Lights, with possibility of generating any color ...Read more
Downloads Catalogue
  • Description
  • Specifications

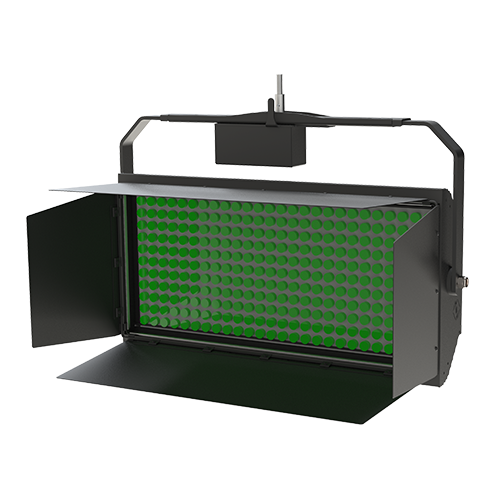

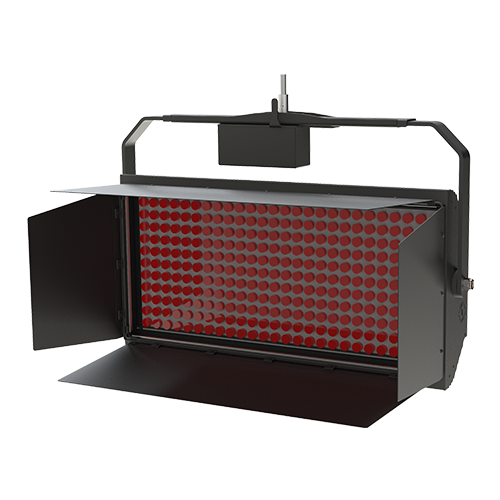

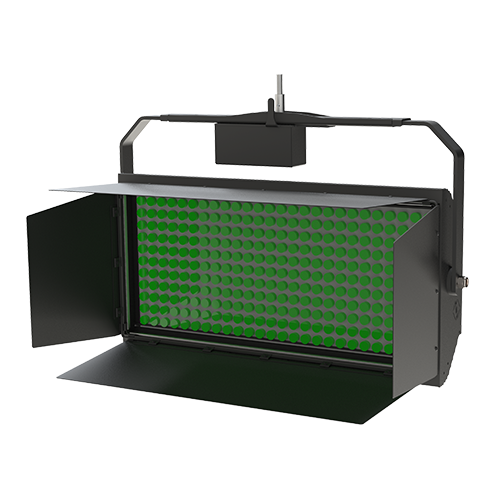

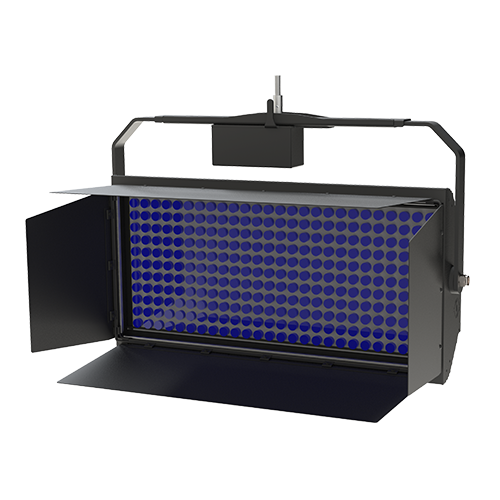

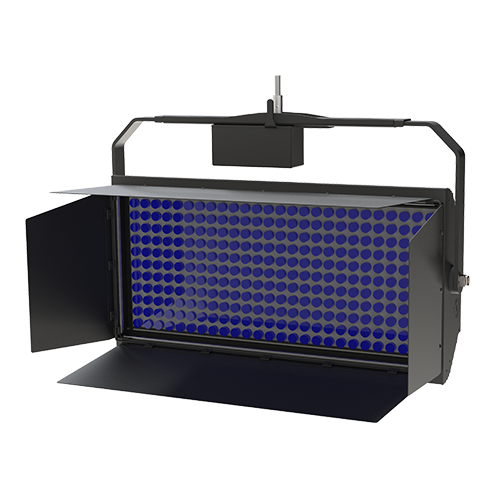

NL-F120RGB is a RGB type of NORDLYS SoftLights with narrow beam spread of light Enables creating pure red,green,blue and even mixture of them for any desire color Of light.
There is a special page in NORDLYS transmitter device(called TANYA) for our RGB Lights, with possibility of generating any color just by inserting RGB color code of The desire color; for instance vibrant hue of cyan color can be made by the fusion of Green and blue! and just a reminder,equal combination of all three basic colors ends Up to pure white light.
Also there is a visible color spectrum in RGB page that by touching each coordinates Of it, you’ll be able to transfer that touched color to NL-F120RGB wirelessly!
It’s worth mentioning,you can save your favorite color as presets and finally you can Have a dancing light in NL-F120RGB projector by capability of setting switching time!
Like every other NORDLYS devices and unlike Competitive light devices, NL-F120RGB is able to be moved horizontally (PAN movement) and vertically(TILT Movement) thanks to its built-in motors.
For the record, “NL-F250K2” supports standard protocol of light consoles(DMX)And standard protocol of joystick tables (Pelco-D).



Techniacal Features

  • Input Voltage: 110-240 Vac , 50/60Hz
  • Maximum Power Consumption: 120Watt
  • Color Rendering Index: (CRI, Ra ≥97), TLCI ≥ 98
  • Estimated LED Lifetime: 50,000 H
  • Working environment Temperature: -20˚C ~ 60˚C
  • Maximum humidity of working environment : %85
  • Energy effciency : greater than 90% (high)
  • DMX input/output Port type: XLR female/male connector
  • Memorry type: internal eeprom for saving last parameters (Address,level,cct,etc)
  • Optical consideration:
  1. Four leaf barndoors
  2. Substitutable diffusion panel (light,middle,heavy)
  3. Possibility of selecting LED lens angle (60,90,120)
Soft120RGB Soft120RGB
680 mm, 300 mm, 510mm
9.7 Kg
200 mm
Cast Aluminum
Customizable
PAN & TILT
Customizable (with clamp, pantograph,stand,etc)
