NL-XD32 NL-XD32

Product parameter
44signal inputs (40analog +4 digital) :
32 MIC/Line inputs, 2 sets of 3.5 Lotus stereo inputs, 3.5 stereo headphone inputs,
1 set of digital input: sound card, MP3, AES digital input
20 signal output: main output L,R, 14 AUX1-14 auxiliary output, 1 earphone monitoring output, AES output

Signal remote expansion: two 16-in and 8-out stage interface boxes can be connected at the same time to achieve input and output IO expansion, supporting a maximum of 78 signal inputs and 40 signal outputs
Dante support: Direct external Dante box, includ Dante signal input and output, as well as multi-track recording

● MIC input gain adjustment (smooth digital gain, involved in saving to the scene)
● MIC input channel (Linked) parity or AB linkage
● +48V phantom power supply (MIC channels can be opened and closed independently, participate in saving to the scene)
● MIC input channel independent feedback suppression function, effectively suppress whistling
● Each input channel has built-in pressure limiter, noise gate, phase, high-low pass filter, 5-stage parametric equalization, delay, channel sound and image balance adjustment
● Fast copy of channel parameters
● Each channel is equipped with multi-function menu, mute and monitor
● All channels are equipped with 100MM electric push rods (26 ALPS electric push rods)
● 26 channel guide TFT display, can monitor and display channel status in real time, support Chinese editing channel name and channel background color modification
● Independent physical fader control of input, output and effect channels
● Each channel fader supports user-defined layer functions
● Two fader layer page turning buttons (input page turning, output and effect fixed fader, more convenient and quick operation)
● 8 customizable physical keys
● 8 DCA groups and 8 silent groups
● Integrated feedback suppressor management
● Comes with signal generator (pink noise/positive basalt/white noise), can be customized from any one or more output channels output
● Comes with real-time spectrum RTA function (color can be edited)
● Support dual system synchronous data backup
● Channel and scene editing support Chinese input method
● Integrated automatic mixing function
● Support Talback function
● Support MIDI interface input
● AUX output (before/after fader) can be set
● Processing of each output channel: high-low pass filter, 15-31 section parameter equalization (GEQ supports control via fader), compressor, delay, phase
● USB stereo digital recording function
● Built-in sound card (mobile phone, IPAD, MP3, PC direct playback, recording)
● 8 quick scene call mode, 100 scene storage, can customize the scene name, support Chinese input, scene seamless switching, no broken tone, support U disk import and export
● Local built-in 4 independent DSP effect, preset a variety of effect modes for users to use directly
● FX foot switch interface
● 12V output interface, external lighting equipment can be connected
● Factory Settings can be restored with one click
● Support 232 central control
● Multi-operating system control software (IOS, Android, Windows)
● Support wired network port adjustment (or external router wireless adjustment)

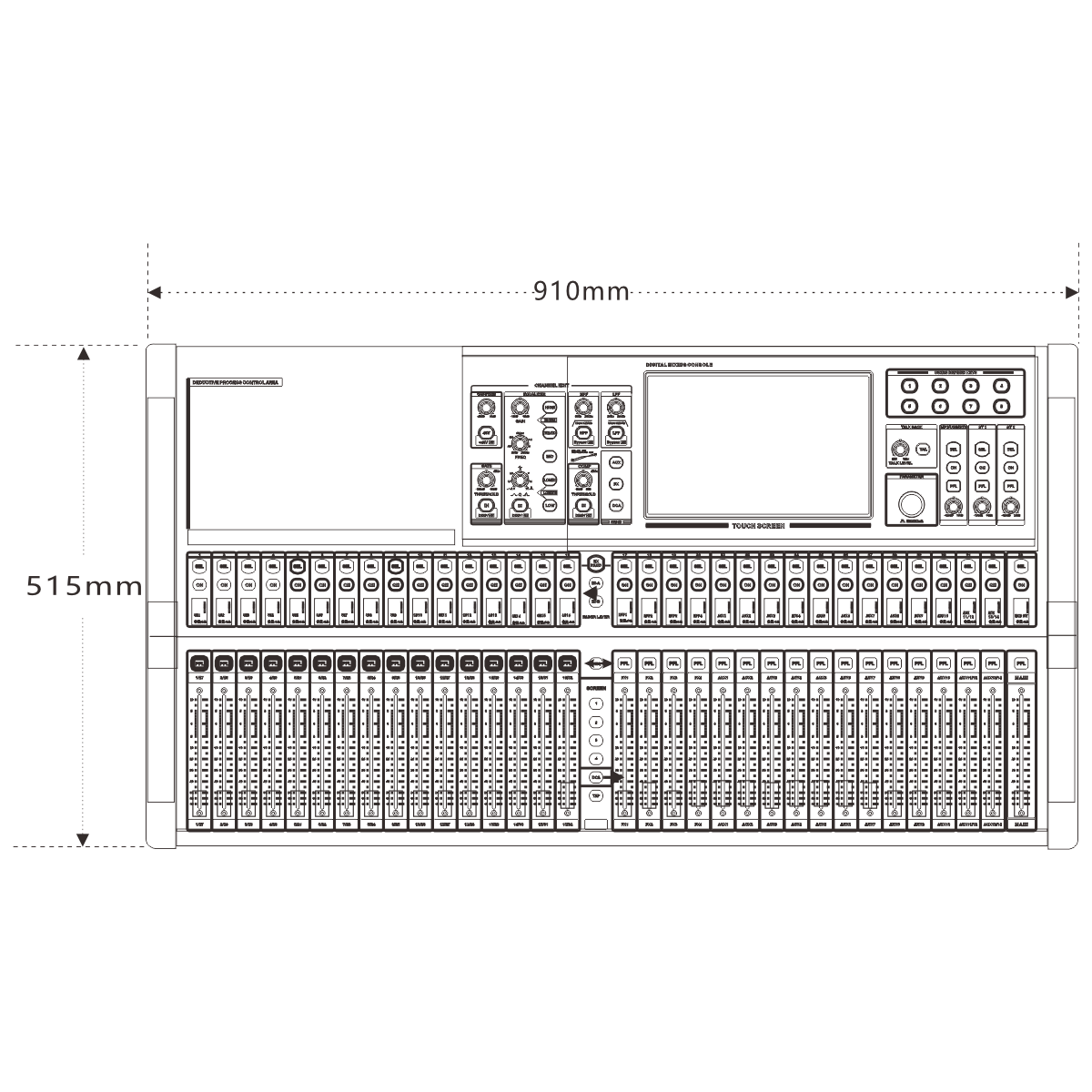

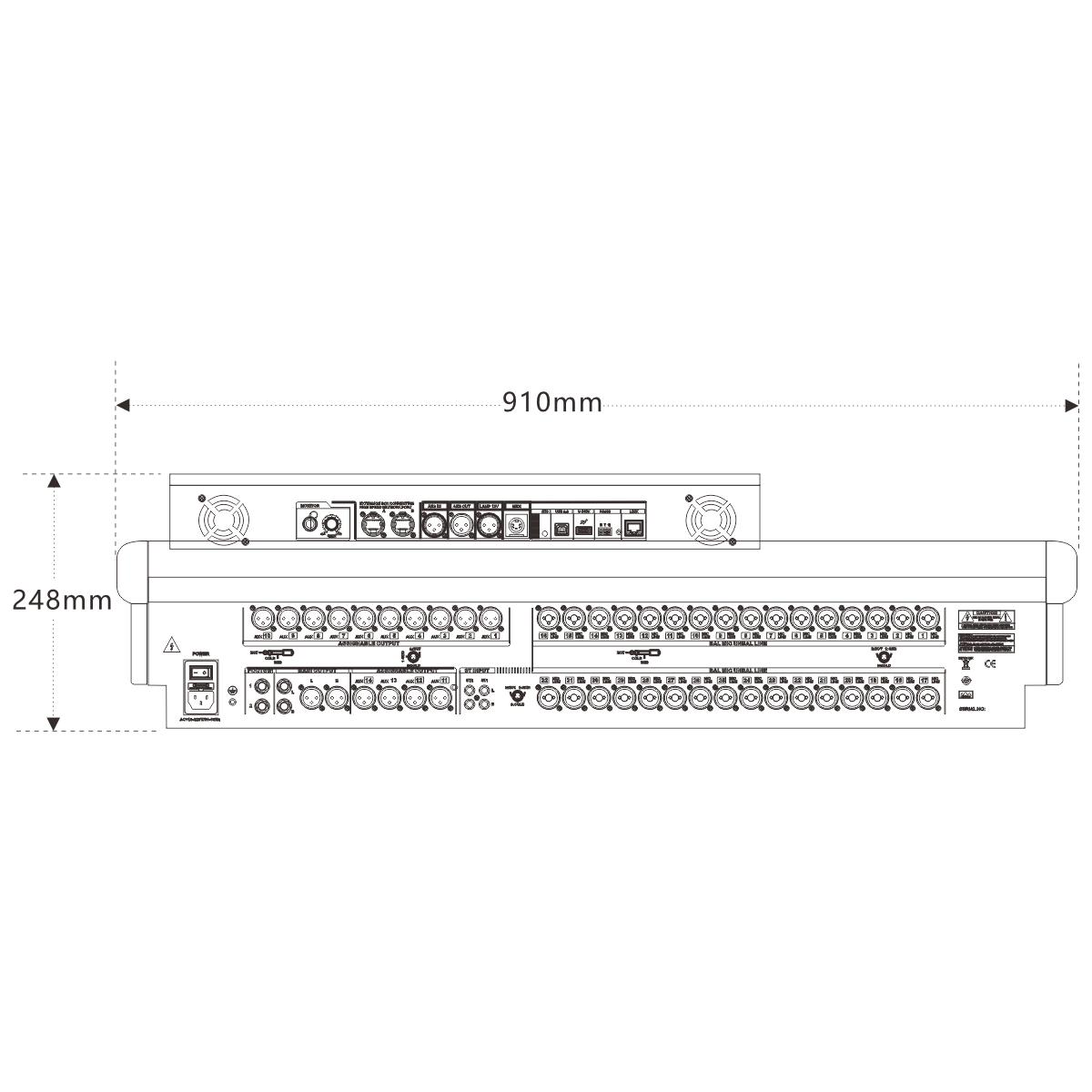

Length, width and height: 910*515*248MM (length includes 6.35 input seat, width includes side plate, height includes machine leg;Knobs not included)

Net weight: 18.25kg Gross weight: 19.05kg Packing size: 1040*630*360MM
