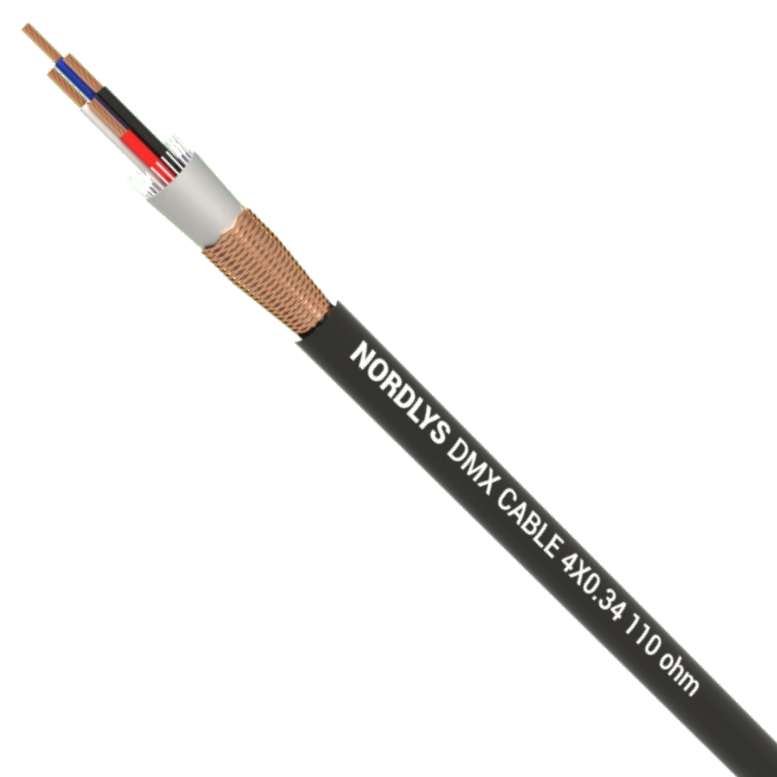

DMX Correlative DMX512 Cable
This cable is designed for professional DMX512 and AES/EBU digital signal transmission. Featuring a symmetrical construction, oxygen-free copper conductors, and 100% shielding, it is suitable for a wide range of demanding applications in stage, studio, broadcast, and installation environments.
General Data
| Properties | Analog |
| Properties | OFC oxygen free copper |
| Properties | Digital 110 Ω AES / EBU |
| Application Area | Stage / live |
| Application Area | outdoor / indoor |
| Application Area | Studio / Broadcast |
| Application Area | Installation |
| Application Area | ELA 110 V |
| Application | DMX |
| Colour | black |
| UV-resistant | yes |
Technical & Electrical Data
| Signal transmission | symmetrical |
| Construction | [2(2LIZYS0,34mm²)(ST)]/CY |
| Jacket material | PVC |
| Jacket Ø [mm] | 7.10 |
| Number of Channels (AES/EBU, DMX) | 1 |
| Inner conductor (AES/EBU, DMX) | 4 |
| Inner conductor cross-section [mm²] | 0.34 |
| Inner conductor Ø [mm] | 0.66 |
| AWG (AES/EBU, DMX) | 22 |
| Copper strands (AES/EBU, DMX) | 7.10* |
| Copper strand Ø [mm] | 0.25 |
| Conductor insulation material | PE |
| Conductor insulation Ø [mm] | 1.60 |
| Shielding | Copper-cross mesh, tinned + AL / PT foil |
| Shielding factor [%] | 100 |
| Impedance [Ω] | 110 |
| Capacitance cond./cond. per 1 m [pF] | 58 |
| Capacitance cond./shield. per 1 m [pF] | 100 |
| Conductor resistance per 1 km [Ω] | 53 |
| Shield resistance per 1 km [Ω] | 15 |
| Insulation resistance per 1 km [GΩ] | 5 |
| Weight per 1 m [g] | 66 |
| Fire load per m [kWh] | 0.22 |
| Temperature min. [°C] | -25 |
| Temperature max. [°C] | 80 |
| Style variant | round |
| Packing | 100 m spool |
