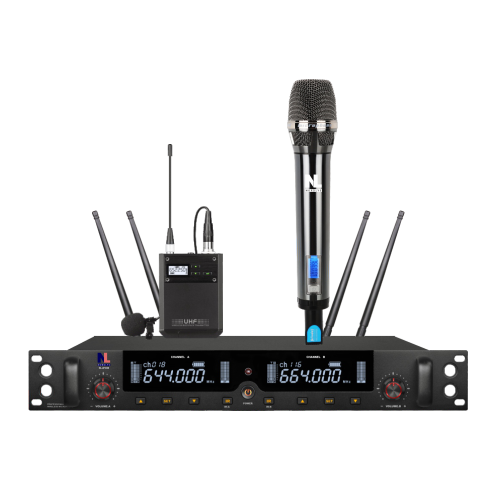

True Diversity UHF Wireless Microphone System

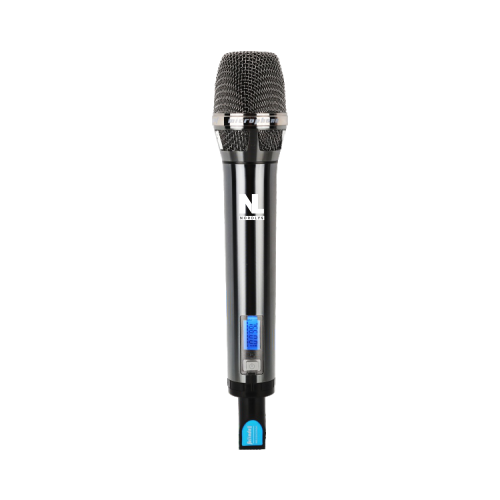

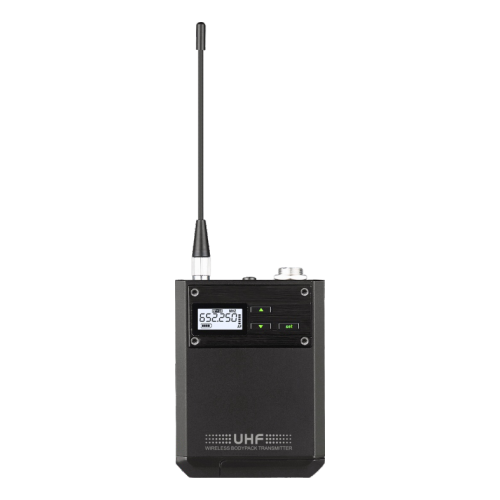

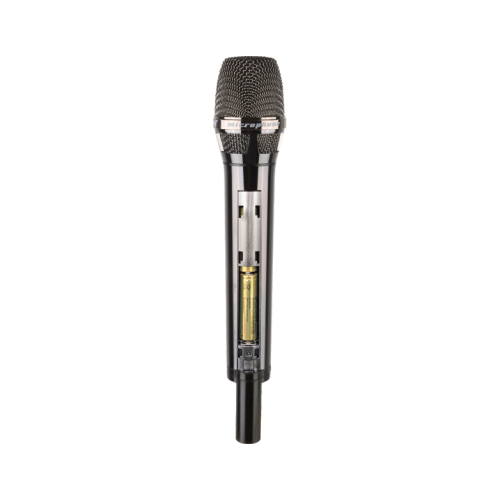

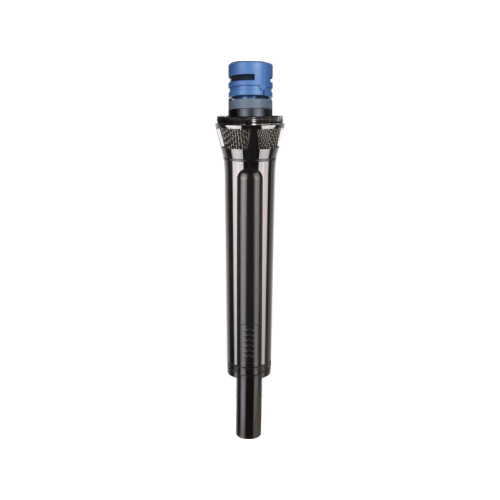

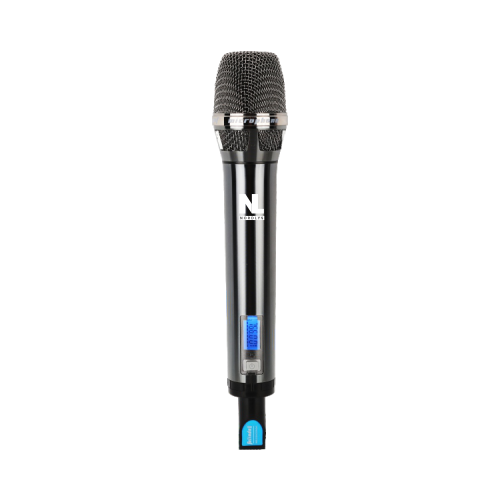

Transmitter
- Material:Metal
- Oscillation mode:PLL Synthesized
- Frequency range:UHF640~673MHz
- CHA: 640-648MHz
- CHB: 665-673MHz
- Band width:250MHz
- Frequency adjustable: Automatic tracking receiver, channel/manual adjustment
- Output power：40mW
- Harmonic radiation:＜55dBc
- Maximum deviation:±48KHz

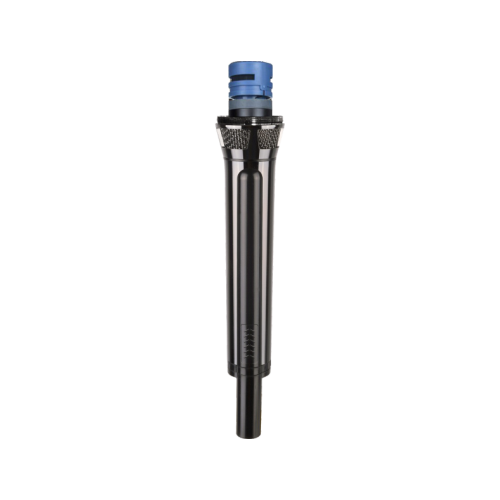

- Capsule:Dynamic

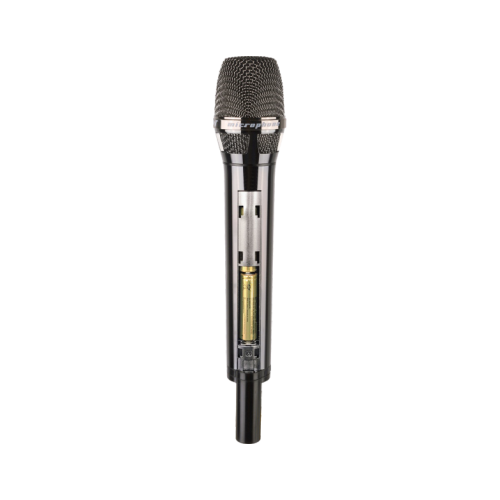

- Battery:1.5V AA*2

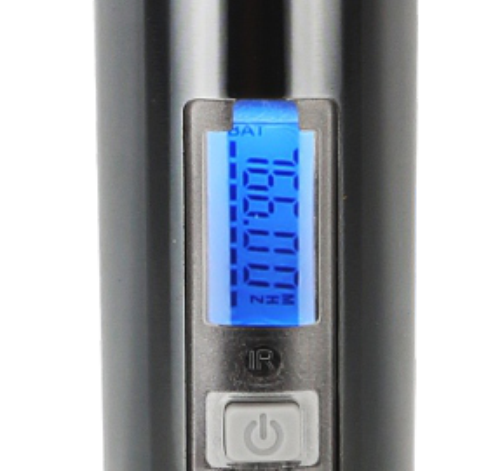

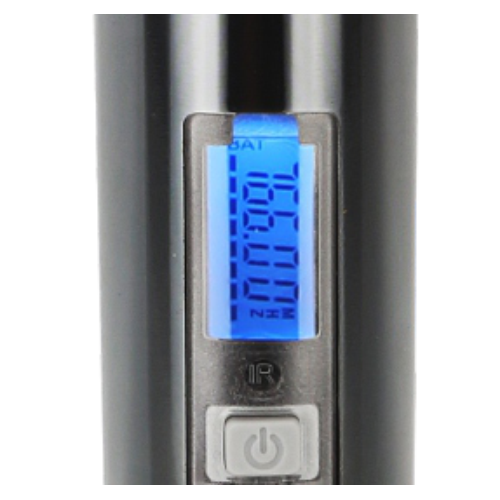

- Operating display: LCD displays battery capacity, channels

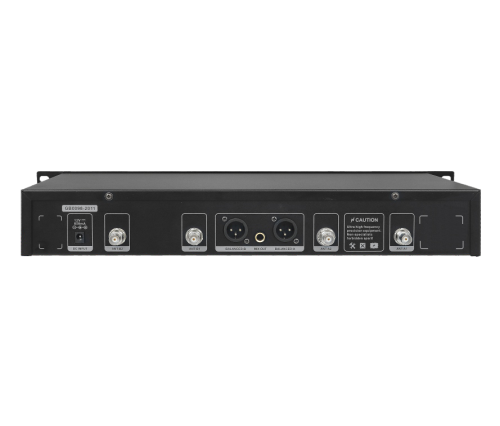

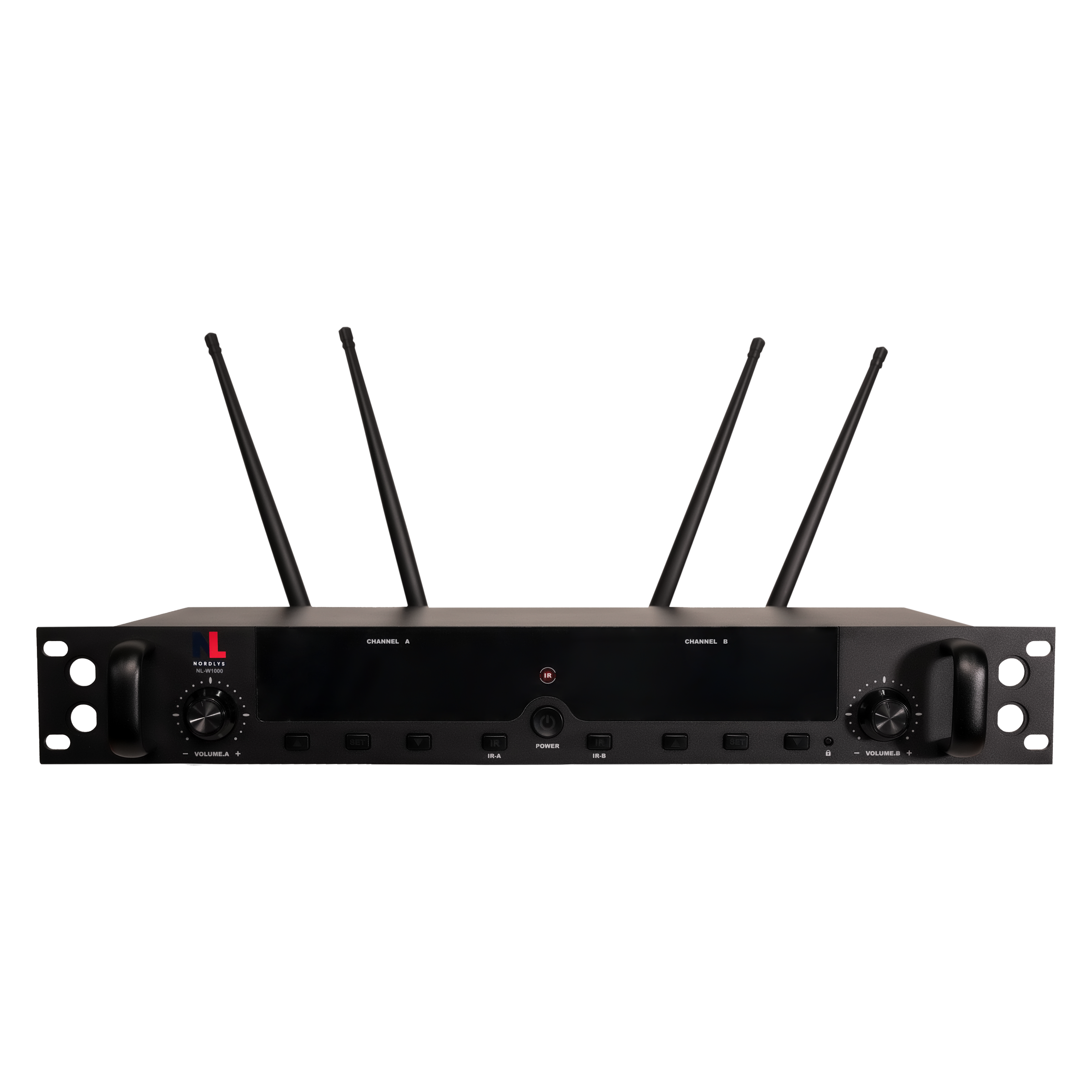

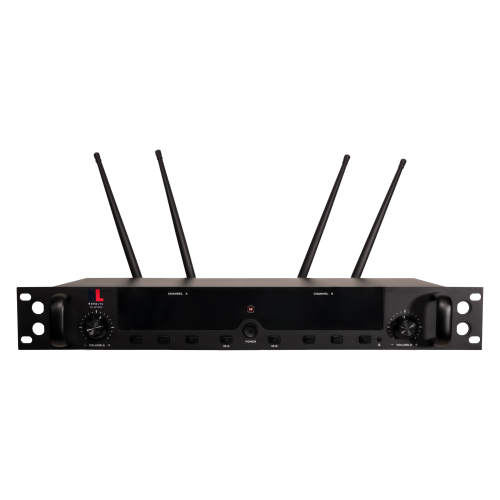

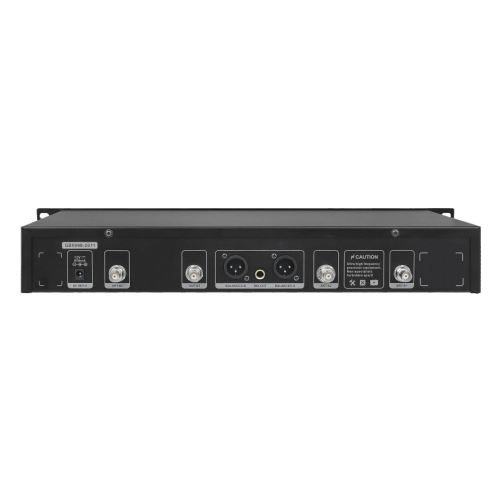

Receiver
- Oscillation mode：PLL Synthesized
- Radio-frequency stability：±0.005%(-10~50℃)
- Carrier frequency：UHF MHzBand width：16 MHz
- Channel：64 CH（In a 250 KHZ step by step）
- Operating mode：manual
- Receiving sensitivity：At offset is equal 25KHz
- Input-100dBm，S/N＞80dB
- Maximum deviation：±48KHz
- S/N：＞102Db
- T.H.D：＜0.5%@1KHz
- Frequency respond：60Hz~15KHz
