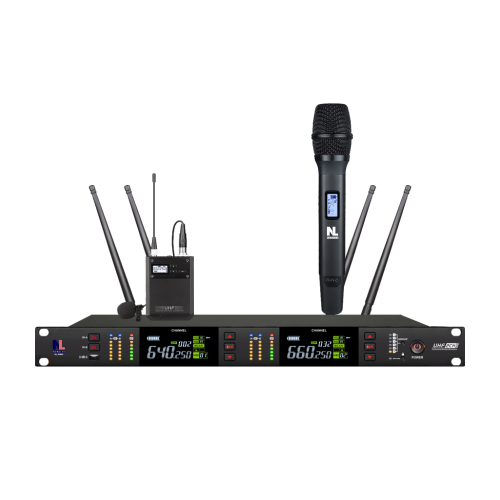

True Diversity UHF Wireless Microphone System

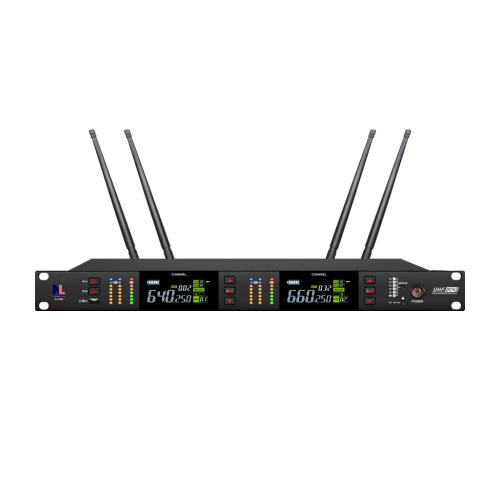

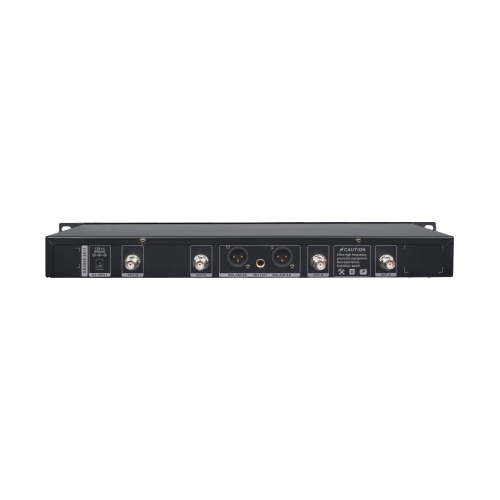

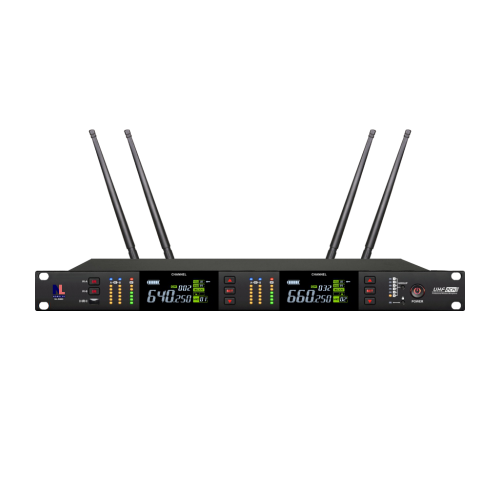

Technical parameters of receiver:
- Frequency range: UHF 610-670MHz
- Channel number: 200 × 2
- Frequency stability: 0.002ppm
- Receiving sensitivity: - 100dB
- Audio frequency response: 60Hz-18KHz (± 3dB)
- Harmonic distortion: < 0.5%
- SNR: > 105dB
- Dynamic range: 105dB
- Maximum frequency offset: ± 48KHz
- Spurious suppression: ≥75dB
- Audio output: balanced output and unbalanced output
- Power supply: 12-18V DC / 1000mA

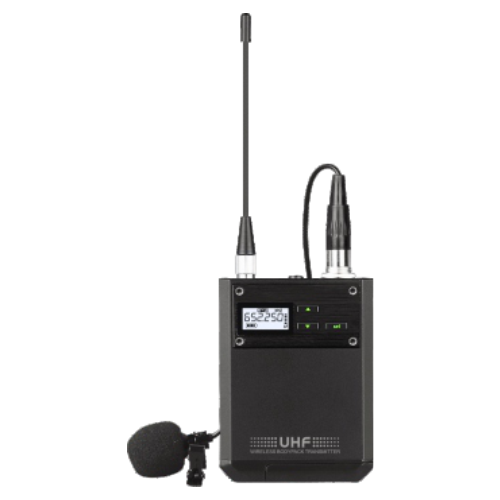

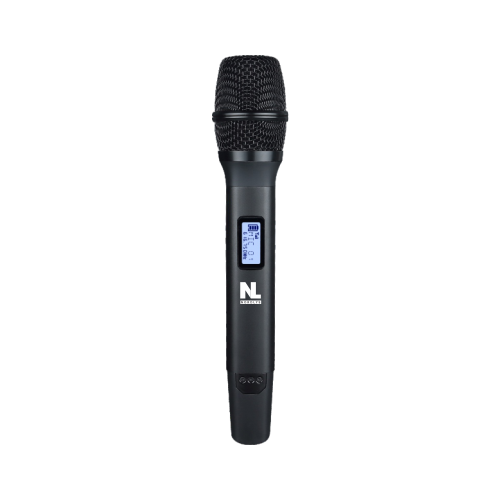

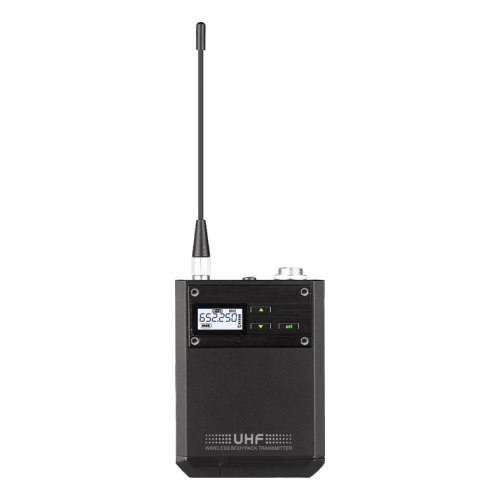

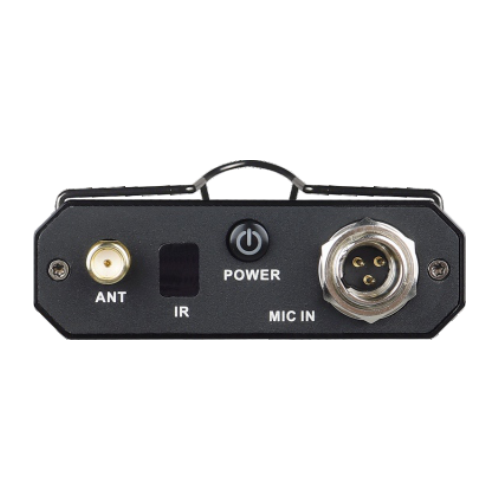

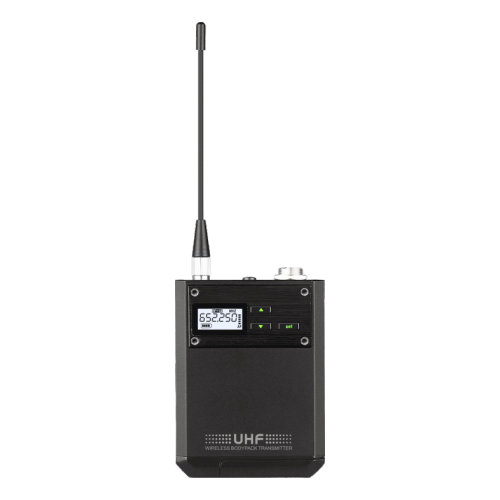

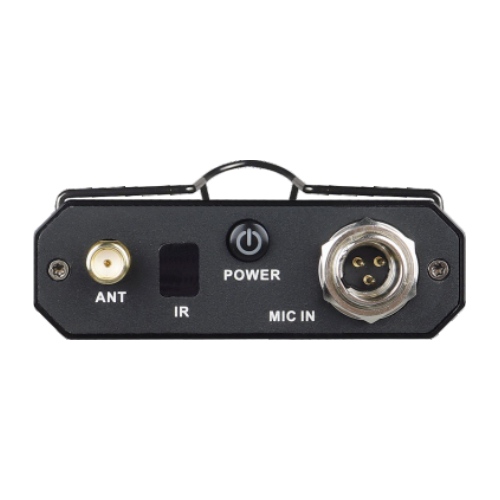

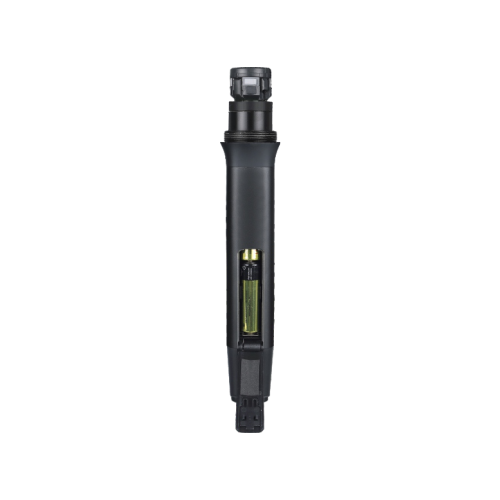

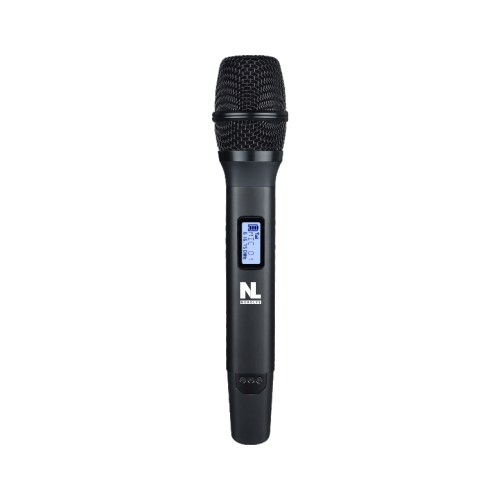

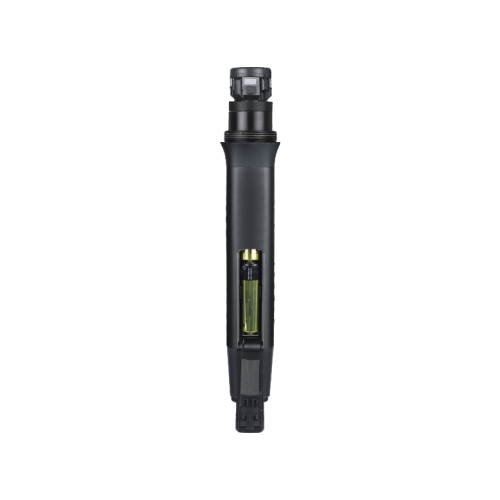

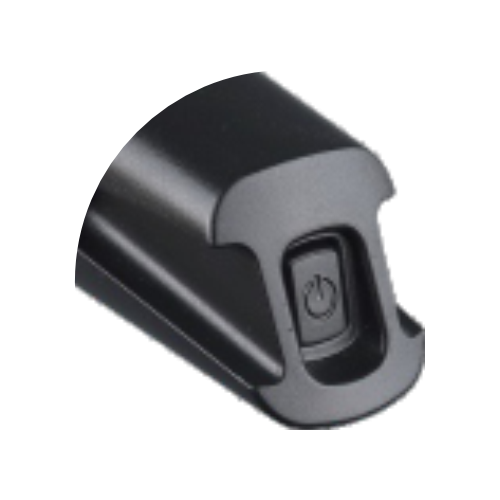

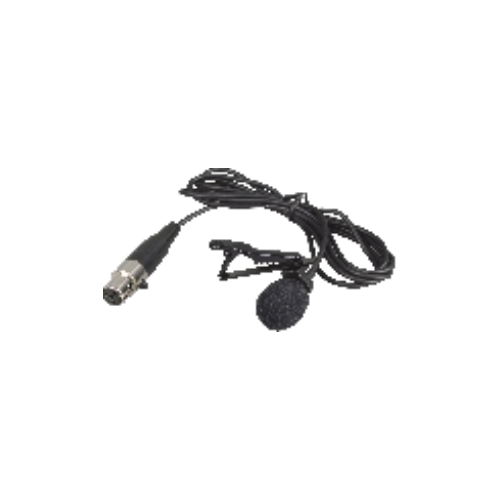

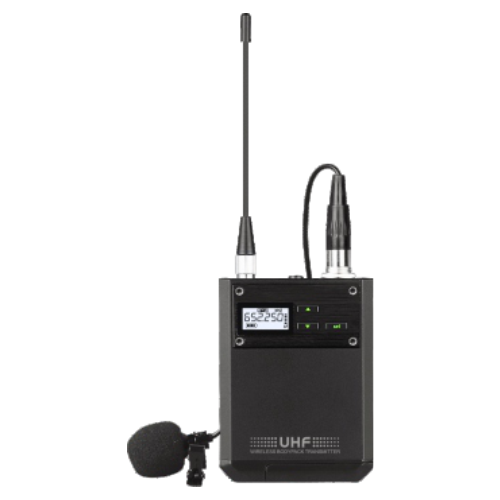

Technical parameters of transmitter:
- Frequency range: 610-670MHz
- Maximum channels: 200 × 2
- Output power: 5MW / 30MW
- Sidewave suppression: > - 70dB
- Bandwidth: 60MHz
- Maximum modulation depth: ± 48KHz
- Frequency response: 60-15KHz
- SNR: > 105dB
- Distortion: < 0.5%
- Input voltage range: mic1vMax
- Power supply: 2 × 1.5V (AA)
- Battery life: 10h
| 12-18V DC / 1000mA |
